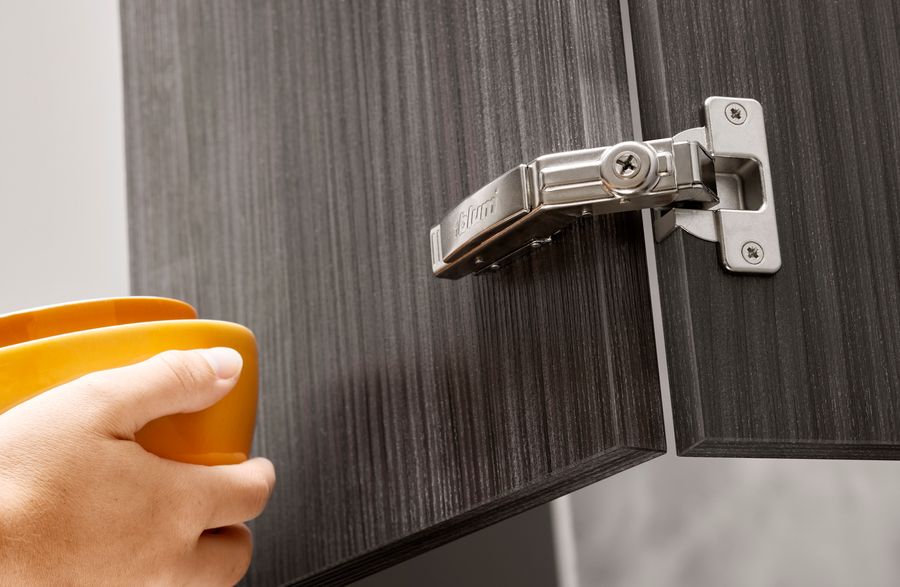

    CLIP top corner cabinet bi-fold hinge
    Blum · CLIP top

    CLIP top angled hinge 60°, bi-fold application

    Sprung CLIP top hinge for bi-fold doors, with a 60° opening angle and gap adjustment.

    Ask for a price +233 54 2888 000

    Supplied by DFWI Ghana, 43A Spintex Road, Accra. Our workshop can drill your cabinet parts for Blum fittings as part of our cutting service.

    All Hinge Systems

    Specification

    Opening angle
    60°
    Boss assembly
    Screw-on
    Boss material
    Zinc
    Closing mechanism
    With spring
    Side adjustment
    ± 2 mm
    Depth adjustment
    +3 mm / -2 mm, with spiral screw
    Gap adjustment
    +7.2 mm / -4.2 mm

    Applications

    • Kitchen doors
    • Wardrobes
    • Bathroom vanities
    • Office and school cabinets
    • Hotel furniture
